Weighbridge Application Intelligent Terminal
WEIGHBRIDGE INTELLIGENT TERMINAL
Model: AND7300
Weighbridge Application Intelligent Terminal “AND7300” is a complete solution to serve for public or industrial weighbridge. Its features of weighing, data processing, saving, printing makes it a stand-alone utility for weighbridge. ‘AND 7300’ is robust in nature to withstand harsh environmental conditions. It can operate reliably over a wide temperature range and also in humid weather.
Application :
- Public Weighbridges
- Industrial Weighbridges
- Toll Ways

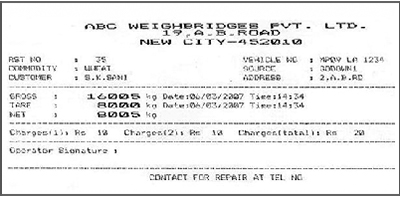

Sample Ticket
Contact us
Write to us
Sample Report
Pen Drive dumping Screenshot
Hardware Features :
- Sophisticated operations powered by 32 bit ARM processor
- Multi step calibration, smart calibration supported by 24bit ADC

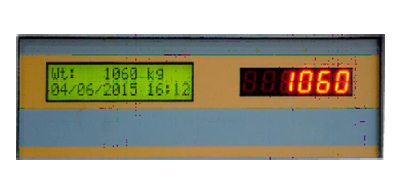

- Front mount 16x2 LCD display & 0.5inch LED display
- High end protection against lightning and surge using improved SMPS
- On board memory to save 1lakh records

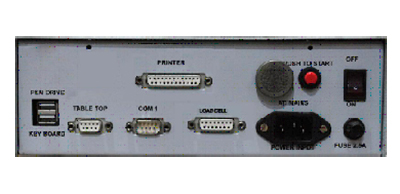

- USB ports for Standard computer keyboard & Pendrive
- Centronics port for 80 column Dot matrix Printer
- RS232 port for display/GSM modem/continuous transmission of current weight
- Table top port for connecting external wired displays
Software Features “Weighbridge Privilege” :
- Simple process for weighment of Tare/ Gross Vehicle weight
- 10 entries in ticket of 5 characters each
- 4 code banks for 100 codes each( Flexibility of setting)
- Field settable header, footer, signature lines
- Facility to view/print earlier saved records according to RST no/ Vehicle no
- Multiple report option all/asummary/filtered/serial no. wise/date wise/time wise
- Dumping of report into pen drive to avail softcopy of records (.xls)
- Field settable Pre-printed tickets
- SMS feature in 3 different ways
- Net weight printing in words
- Mandi Application feature of Rate, Amount, Binding material deduction etc.
Software Feature “installation Privilege”
- LCD start up message field settable as OEM/weighbridge name
- Installation settings secured under engineer login
- Engineer login password field settable by authorised OEM
- 20 step software calibration with random load sequence
- Smart Calibration
- Multi-step smart calibration
- Calibration data restoring
- Installation report
Scope of Supply
- AND 7300
- Power cable
- Load cell connector
- Printer isolator cable
Optional Features
- Confidential Report
- Inbuilt wireless for connecting wireless accessories (JB,display)

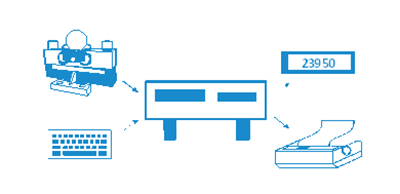

Peripheral
Technical Specifications
| Processor | 32 bit ARM processor |
| Processor clock | 50 MHz |
| Real time clock | On board battery backed RTC |
| RTC clock frequency | 32.768 KHz |
| Memory | On board memory to save 1 lakh records |
| Power supply | SMPS power supply |
| Input voltage | 90V to 270V AC @ 50Hz |
| Protection | 750mA fuse for input AC mains Input line filter for EMI and RFI suppression pike suppressor for input transients Opto-isolation of signals and I/O’s for high immunity from electrical noise |
| Power consumption | 10 VA (approx.) |
| A/D converter | Sigma Delta type with 24 Bit resolution |
| A/D clock | 20 Hz |
| Conversion speed | Internal 25 samples per second |
| Load cell excitation | 8V DC with current capability to drive up to 12 load cells of 350 ohms input resistance |
| Signal sensitivity | 0.3 micro volt per division of weight (unit weight) |
| Display | 16 characters by 2 line LCD display with backlight 1/2" LED 7 segment red display to show weight. |
| Keyboard port | 101-key with USB connector compatible keyboard. (Recommended for use Logitech or Microsoft) |
| USB Port | USB Port configured for Pen Drive/ DMP printer |
| Printer port | Isolated Centronics compatible printer port to connect 80-column dot matrix printer for printing of weighment record and reports |
| Serial port | Isolated RS-232 serial port for continuous weight transfer/modem connectivity |
| Remote display port | Remote display port to connect external display 1/2”, 1”, 2.3” & 4” |
| Environment | Operating temperature: 0° to 55° celsius |
| Humidity | up to 95% RH non-condensing |
